Models

Models

Three
different
sizes

Stevenson screen size large

Internal dimensions:
W: 760mm|D: 455mm|H: 525mm

External dimensions:
W: 860mm|D: 555mm|H: 770mm
Dimensions roof:
W: 1060mm|D: 800mm

€ 1.735,–
excl. VAT and shipping
 Submit request

Stevenson screen type A

Internal dimensions:
W: 330mm|D: 330mm|H: 445mm

External dimensions:
W: 410mm|D: 410mm|H: 620mm
Dimensions roof:
W: 600mm|D: 600mm

€ 875,–
excl. VAT and shipping

Submit request

Stevenson screen type B

Internal dimensions:
W: 470mm|D: 270mm|H: 445mm

External dimensions:
W: 550mm|D: 350mm|H: 620mm
Dimensions roof:
W: 740mm|D: 540mm

€ 1.125,–
excl. VAT and shipping
Submit request

Stevenson screen size large

€ 1.735,–



You’ll be sent an email confirmation shortly. The delivery costs are calculated from the specified delivery address.

close

Stevenson screen type A

€ 875,–



You’ll be sent an email confirmation shortly. The delivery costs are calculated from the specified delivery address.

close

Stevenson screen type B

€ 1.125,–



You’ll be sent an email confirmation shortly. The delivery costs are calculated from the specified delivery address.

close

Specifications

  • White color, screen will be delivered without legs (upon request).
  • Screen without measuring instruments.
  • Revolving door can be locked with universal square key.
  • All models made of solid wood from local forests.
  • Wood is obtained from PEFC chain of custody certified companies and all parts are processed in East Tyrol, Austria.

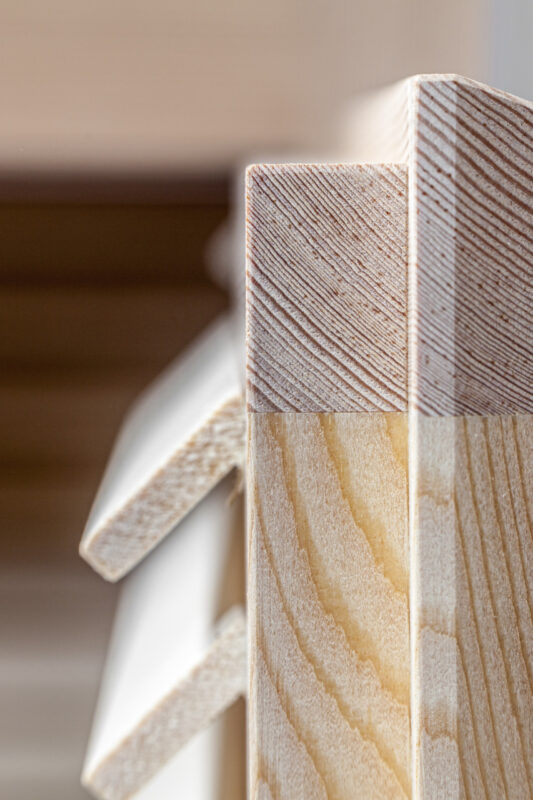

  • Corner and wooden connections of the screens are connected with wooden dowels (metal-free). The only exception is the roof which is fastened with screws.
  • The paints used are water-based paints and are obtained from the Austrian manufacturer Adler. Screens are protected against blue stain and mold by using paints with biocidal agents.
  • The special paint provides additional properties such as UV resistance, high weather resistance, protection against fungal infestation, protection against mold, blocking resistance of the paintwork and thus high protection of the wood.
  • The roof is made of an 8 mm HPL facade panel in the color RAL9016 (traffic white). Properties of the HPL panels are high UV resistance, dimensional stability, impact resistance, weather and heat resistance, and scratch resistance.
  • Due to the materials used and their listed properties, the screens are durable and therefore also convince in terms of sustainability.



https://www.wetterhütte-lanser.at/en/models/
Double roof with lid
keeps out rain

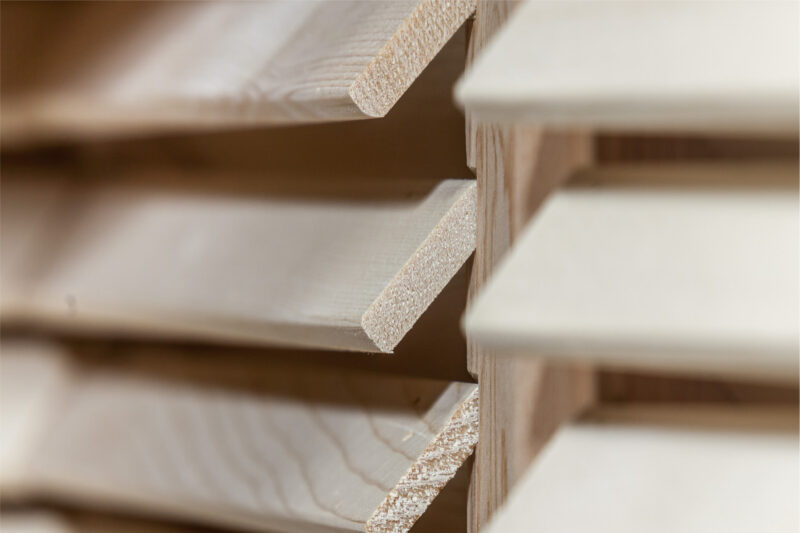

Louvres allow
air to circulate
White paint reduces
heat absorption
Stevenson screen type A
W: 410 mm
D: 410 mm
H: 620 mm
Stevenson screen type B
W: 550 mm
D: 350 mm
H: 620 mm
Stevenson screen size Large
W: 860 mm
D: 555 mm
H: 770 mm
